LED Moving Head Wash Light LW500
GET A QUOTELED Moving Head Wash Light LW500
Light Source
Light Output
Zoom Range
- Description
- Specifications
- FAQS
- Downloads
Features:
- 7x60W RGBW 4in1 LEDs multichips.
- Quiet, stable and fast moving system with re-positioning function.
- Small size and light weight.
- 5°-50° ultra-large zoom range to achieve greater wash effect.
- The preset macro function mixing color, which can create thousands of color combination effects.
SOURCE | 7x60W 2in1 WS LEDs | EFFECTS | Macro function:Various preset color mixing effects |
50000 Hour Average LED Life* | Electronic Dimmer:0-100% linear | ||
*Verify the lab’s settings. Many variables, such as but not restricted to: environmental factors power/voltage, usage behavior (on-off cycling)controllingand dimming, may change |
Motorized Focus:0-100% linear | ||
PHOTOMETRIC DATA | Total Lumen Output :5000 Lm | Strobe:effect with variable speed up to 25 Hz pre-programmed random strobe & pulse effects |
|
CRI :≥70 | Movement:Pan 540°,Tilt 240° (16/8 bit) | ||
Zoom Range:5°- 50° | CONTROL / CONNECTIONS | DMX :11Ch,15Ch | |

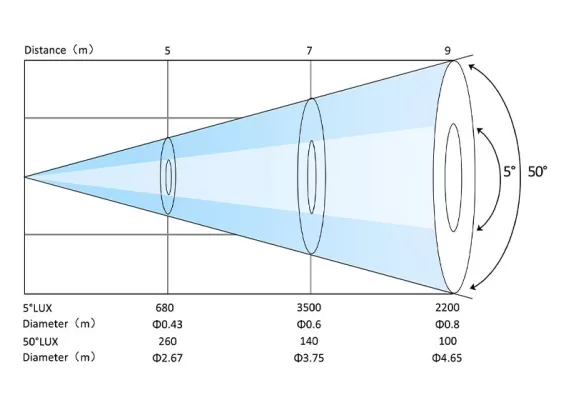

Illumination: Center brightness≥3600LUX@9.0M(29.5’)(5° Full ON) spot diameter <1.0M |
Pan/Tilt 16/8 bit | ||
COLOR | Color Mixing:5 Variable Dimming Curve Modes | DMX, RDM protocol support, master-slave sound control,auto |
|
CTO : 3200K-6400K | 4 touch buttons ,2.0inch LCD | ||

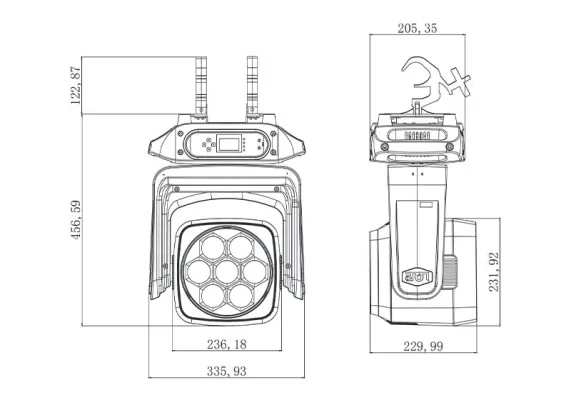

SIZE / WEIGHT | Size:L340×W232×H455mm (13.4’’x9.1’’x17.9’’) | 180° Reversible LCD Menu Display | |
Weight:26.5 lbs, (12.0KG)(incuding clamps) | Electronic Dimmer:0-100% linear | ||
ELECTRICAL | Rated Voltage:AC 100-240V 50/60Hz | Motorized Focus:0-100% linear | |
Rated Power:Max Power Consumption 500W | Energy saving mode | ||
Power Factor:0.95 | IP NEUTRIK DMX XLR In/Out | ||
Working temperature:32°F to 104°F (0°C to 40°C) | IP PowerCon In/Out | ||
Physical Features | Flame retardant, high temperature resistant PC+ABS shell |
APPROVALS / RATINGS | CE pending| cETLus pending | IP20 |
Folding integrated, rotatable light clamps | |||
INCLUDED ITEMS | PowerCon 3.0M 3*2.5mm² In/Out | ||
DMX XLR 3.0M In/Out | |||
Satefy rope |
- QDoes LQE Offer Customized Stage Moving Light Solution?
-
A An experienced R&D team can provide customized digital stage lighting OEM/ODM solution service to meet clients’ unique demands from global markets, such as customized CRI parameter, Ingress protection rating, effect, etc.
- QCan I Have a Sample Order for Led DJ Light?
-
A Sure, sample order are welcome to test and check LQE quality. Mixed samples are acceptable.
- QWhat Kind of Certificates You Offer?
-
A All kinds of certificates could be offered by LQE digital moving light factory, which depends on customer’s required, different pricing plan for different approval.
- QWhat Is the Warranty Offered by LQE Lighting?
-
A LQE lighting offers a comprehensive 1-year warranty and spare parts on its products, giving customers peace of mind and investment protection.
- QDoes LQE Offer a Stage Light Design Solution?
-
A LQE experienced team glad to supply a stage lighting configuration design solution or suggestion for projector who don’t have much experience in lighting design, project, theatre and studio.
- QDo You Supply After-Sale Service?
-
A LQE lighting offers 7x24 hrs systematic SOP customer support with dedicated personnel, ensuring quick and comprehensive assistance for stage lighting needs.
