LED Studio Light Panel PL601
GET A QUOTE
LED Studio Light Panel PL601
Light Source
Light Output
Beam Angle
- Description
- Specifications
- FAQS
- Downloads
Features:
- Scientific combination of lamp beads, high CRI, high light efficiency.
- Simple and clear display interface, easy to understand, simple and practical.
- 0-100% linear dimming.
- Soft spot, high brightness, high dimming angle.
- Easy installation.
- Metal shell, good heat dissipation,ensure its long duration.
- Luminaires for TV studios and conference venues.
| SOURCE | 600 warm white + cool white LEDs Array | EFFECTS | Independent electronic strobe, effect with variable speed up to 25 Hz |
| 50000 Hour Average LED Life* | CONTROL / CONNECTIONS | DMX Channel: 4 Ch | |
| *Verify the lab’s settings. Many variables, such as but not restricted to: environmental factors, power/voltage usage behavior (on-off cycling), controlling and dimming, may change. |
DMX, RDM, master-slave protocol Support | ||
| PHOTOMETRIC DATA | Total Lumen Output 1800Lm | 4 touch button | |

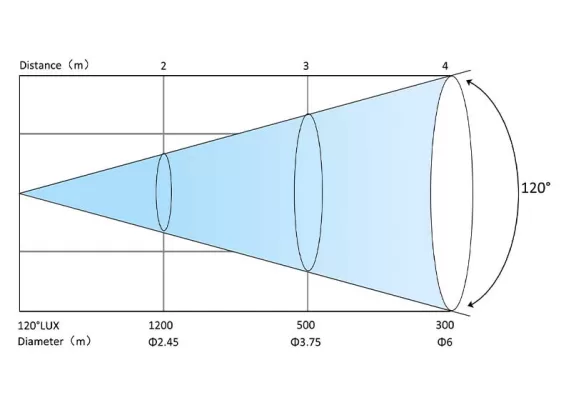

| Beam angle （not including diffuser）：120° | LED disply | ||
| CRI≥96 ， R9≧90 | IP NEUTRIK DMX XLR In/Out | ||
| Illumination: Center brightness ≧ 300LUX@13.1’ (4m) (120° Full ON), spot diameter< 6.0M | IP PowerCon 16A In/Out | ||
| COLOR | CTO: 3200K-5600K uniform color mixing | INCLUDED ITEMS | IP20 NEUTRIK DMX XLR 1.5M x 0.75mm² In/Out |
| Physical Features | Metal shell, good heat dissipation | IP20 PowerCon 1.5M x 1.5mm² 16A In/Out | |

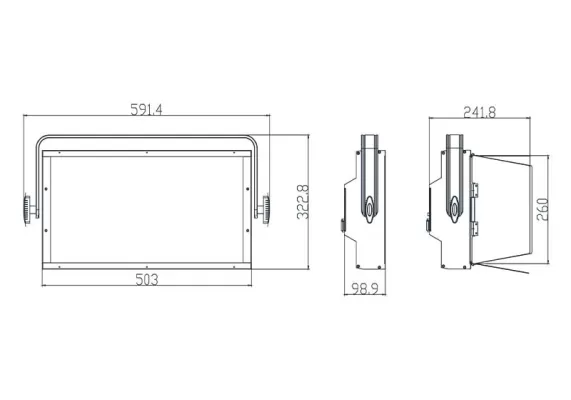

| SIZE / WEIGHT | Size: LxWxH: 600x330x120mm (23.6’’ x 13.0’’ x 4.7”) | Satefy rope | |
| Weight: 18.9 lbs. (8.6 kg) | APPROVALS / RATINGS | CE pending | CETLus pending | IP20 | |
| ELECTRICAL | Rated Voltage：AC 100-240V 50/60Hz | ||
| Rated Power：Max Power Consumption 200W | |||
| Working temperature：32°F to 104°F (0°C to 40°C) |
- QDoes LQE Offer Customized Stage Moving Light Solution?
-
A An experienced R&D team can provide customized digital stage lighting OEM/ODM solution service to meet clients’ unique demands from global markets, such as customized CRI parameter, Ingress protection rating, effect, etc.
- QCan I Have a Sample Order for Led DJ Light?
-
A Sure, sample order are welcome to test and check LQE quality. Mixed samples are acceptable.
- QWhat Kind of Certificates You Offer?
-
A All kinds of certificates could be offered by LQE digital moving light factory, which depends on customer’s required, different pricing plan for different approval.
- QWhat Is the Warranty Offered by LQE Lighting?
-
A LQE lighting offers a comprehensive 1-year warranty and spare parts on its products, giving customers peace of mind and investment protection.
- QDoes LQE Offer a Stage Light Design Solution?
-
A LQE experienced team glad to supply a stage lighting configuration design solution or suggestion for projector who don’t have much experience in lighting design, project, theatre and studio.
- QDo You Supply After-Sale Service?
-
A LQE lighting offers 7x24 hrs systematic SOP customer support with dedicated personnel, ensuring quick and comprehensive assistance for stage lighting needs.
