Small LED Par Can Light PC100WS

Automatic identification of master and slave and DMX control.
Small LED Par Can Light PC100WS
Small LED Par Can Light PC100WS
Small LED Par Can Light PC100WS
Small LED Par Can Light PC100WS
Small LED Par Can Light PC100WS
Light Source
100W COB WS 2in1 LEDs
Light Output

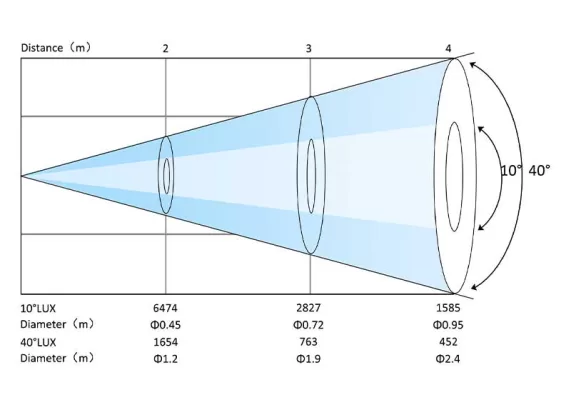

1200Lm, Center brightness ≧ 1040LUX@16.4’ (5m) (10° Full ON)
Zoom Range

PC100WS ParameterPC100WS Parameter

  • Description
  • Specifications
  • FAQS
  • Downloads


  1. 100W COB WS 2in1 LEDs.
  2. Manual zoom 10°~40°.
  3. Adjustable color temperature, high CRI.
  4. High-sensitivity sound control can capture 10 sound signals per second.
  5. 0255-level linear dimming, the color is exquisite and remarkable.
  6. Automatic identification of master and slave and DMX control.
  7. Mini size, light weight, easy to install.
SOURCE 100W COB WS 2in1 LEDs EFFECTS Independent electronic strobe, effect with variable speed up to 25 Hz
20,000 Hour Average LED Life* Electronic Dimmer: 0-100% linear
*LED life may differ based on a number of variables, including but not limiting to environmental factors, power/voltage, user behavior
(on-off cycling), controls, and dimming
PHOTOMETRIC DATA Total Lumen Output: 1200Lm 4 touch button
CRI ≥ 96 LED Display
Zoom range:10°~40° (Manual) DMX XLR IP20 3*0.75mm² In/Out
Illumination: Center brightness  ≧ 1040LUX@16.4’ (5m) (10° Full ON) spot diameter< 1.1M PowerCon IP20 3*0.75mm² In/Out
COLOR Color temp: 2800K/6500K INCLUDED ITEMS DMX XLR IP20 3*0.75mm² In/Out
Physical Features Die-cast aluminum shell,excellent heat dissipation PowerCon IP20 3*0.75mm² In/Out
SIZE / WEIGHT LxWxH:L260×W168×H200mm (10.2’’ x 6.6’’ x 7.9”) APPROVALS / RATINGS CE pending | CETLus pending | IP20
Weight: 4.0 lbs. (1.8 kg) (including clamps)
ELECTRICAL Rated Voltage:AC 100-240V 50/60Hz
Rated Power:Max Power Consumption 100W
Working temperature:32°F to 104°F (0°C to 40°C)
QDoes LQE Offer Customized Stage Moving Light Solution?
A An experienced R&D team can provide customized digital stage lighting OEM/ODM solution service to meet clients’ unique demands from global markets, such as customized CRI parameter, Ingress protection rating, effect, etc.
QCan I Have a Sample Order for Led DJ Light?
A Sure, sample order are welcome to test and check LQE quality. Mixed samples are acceptable.
QWhat Kind of Certificates You Offer?
A All kinds of certificates could be offered by LQE digital moving light factory, which depends on customer’s required, different pricing plan for different approval.
QWhat Is the Warranty Offered by LQE Lighting?
A LQE lighting offers a comprehensive 1-year warranty and spare parts on its products, giving customers peace of mind and investment protection.
QDoes LQE Offer a Stage Light Design Solution?
A LQE experienced team glad to supply a stage lighting configuration design solution or suggestion for projector who don’t have much experience in lighting design, project, theatre and studio.
QDo You Supply After-Sale Service?
A LQE lighting offers 7x24 hrs systematic SOP customer support with dedicated personnel, ensuring quick and comprehensive assistance for stage lighting needs.
