Photography LED Light Panel PL1500
GET A QUOTE- Description
- Specifications
- FAQS
- Downloads
Feature:
- The combination of scientific LED beads and advanced optical lens makes the color mixing effect outstanding.
- Simple and clear display interface, easy to understand, simple and practical.
- 0-255 level linear dimming, more delicate and gorgeous colors, soft light spots, high brightness, high CRI and dimming angle.
- Automatic identification of master-slave and DMX, RDM control.
- Easy installation.
- Metal shell, good heat dissipation,ensure its long duration.
- Luminaires for TV studios and conference venues.
SOURCE | 540×0.5W RGB 3in1 LEDs, 448×0.5W cool white LEDs 448×0.5W warm white LEDs |
EFFECTS | Independent electronic strobe, effect with variable speed up to 25 Hz |
50000 Hour Average LED Life* | CONTROL / CONNECTIONS | DMX Channel : 11 Ch | |
*Verify the lab’s settings. Many variables, such as but not restricted to: environmental factors, power/voltage, usage behavior (on-off cycling), controlling, and dimming, may change | DMX512 signal, RDM, self-propelled, master-slave Protocol Support | ||
PHOTOMETRIC DATA | Total Lumen Output 1800Lm | 4 touch button | |

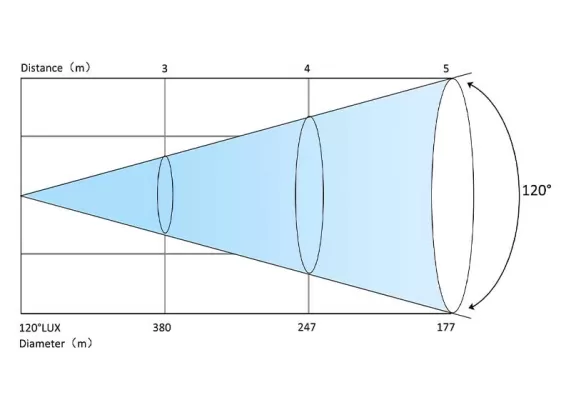

Beam angle :120°(not including diffuser) | LED display | ||
CRI:≥95, CW WW CW+WW Ra≧93 | IP NEUTRIK DMX XLR In/Out | ||
Center brightness ≧ 247LUX@13.1’ (4m) (120° Full ON) spot diameter< 8.0M |
IP PowerCon 16A In/Out | ||
COLOR | CTO: 3200K-5600K | INCLUDED ITEMS | IP20 NEUTRIK DMX XLR 1.5M x 0.75mm² In/Out |
Uniform color mixing | IP20 PowerCon 1.5M x 1.5mm² 16A In/Out | ||
Physical Features | Metal shell, good heat dissipation | Satefy rope | |
SIZE / WEIGHT | Size: LxWxH: 594x382x112mm (23.4’’ x 15.0’’ x 4.4”) | APPROVALS / RATINGS | CE pending | CETLus pending | IP20 |
Weight: Weight: 18.9 lbs. (8.6 kg) | |||
ELECTRICAL | Rated Voltage:AC 100-240V 50/60Hz | ||
Rated Power:Max Power Consumption 200W | |||
Working temperature:32°F to 104°F (0°C to 40°C) |
- QDoes LQE Offer Customized Stage Moving Light Solution?
-
A An experienced R&D team can provide customized digital stage lighting OEM/ODM solution service to meet clients’ unique demands from global markets, such as customized CRI parameter, Ingress protection rating, effect, etc.
- QCan I Have a Sample Order for Led DJ Light?
-
A Sure, sample order are welcome to test and check LQE quality. Mixed samples are acceptable.
- QWhat Kind of Certificates You Offer?
-
A All kinds of certificates could be offered by LQE digital moving light factory, which depends on customer’s required, different pricing plan for different approval.
- QWhat Is the Warranty Offered by LQE Lighting?
-
A LQE lighting offers a comprehensive 1-year warranty and spare parts on its products, giving customers peace of mind and investment protection.
- QDoes LQE Offer a Stage Light Design Solution?
-
A LQE experienced team glad to supply a stage lighting configuration design solution or suggestion for projector who don’t have much experience in lighting design, project, theatre and studio.
- QDo You Supply After-Sale Service?
-
A LQE lighting offers 7x24 hrs systematic SOP customer support with dedicated personnel, ensuring quick and comprehensive assistance for stage lighting needs.
